183

-

Avizor Logistics

/

Leganes - ES

Commission

183

-

Avizor Logistics

/

Leganes - ES

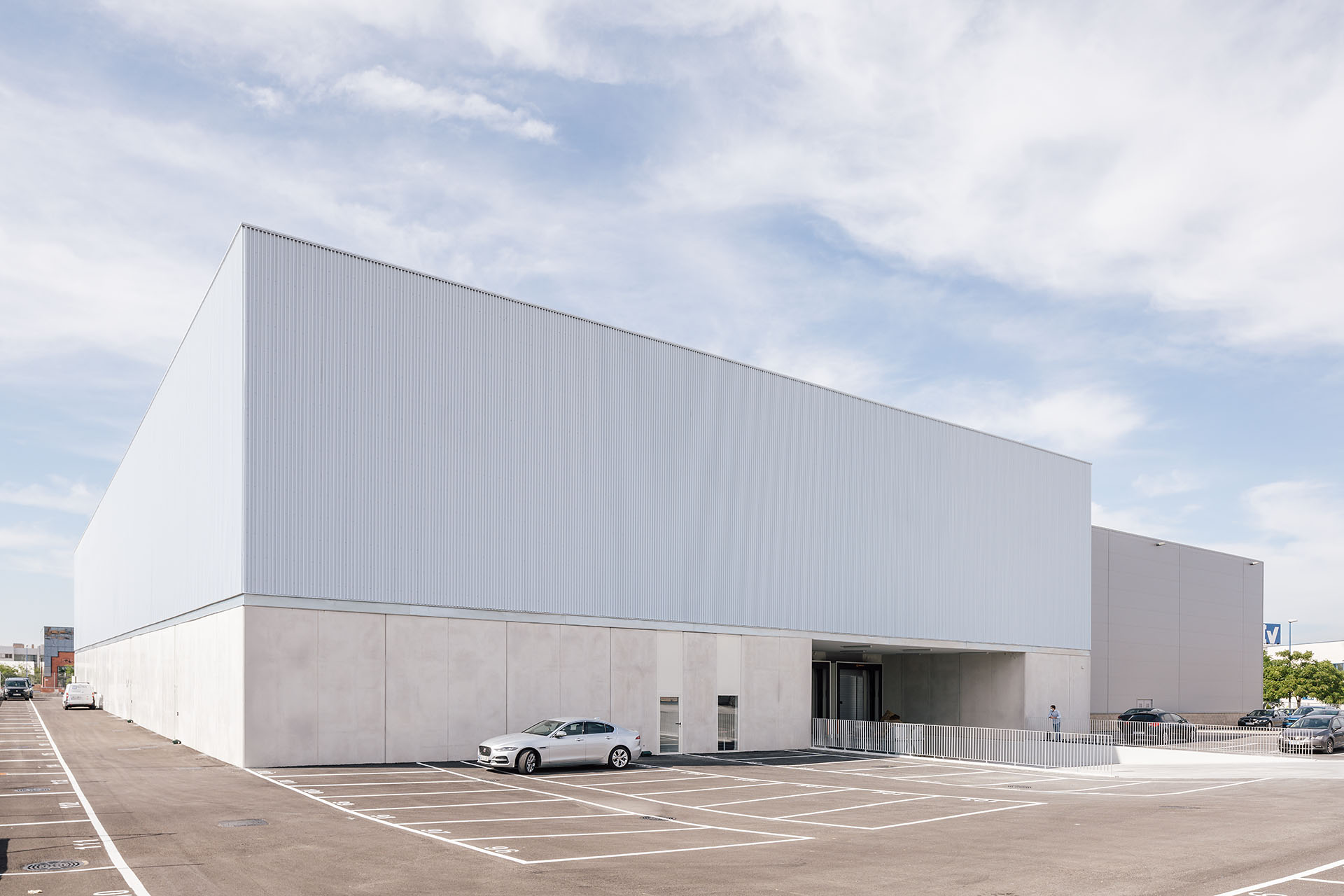

The simplicity of the operation is finished off by the juxtaposition of common prefabricated elements that give the primary volume an additional language: a band of lightly satin precast concrete 4.40 m high includes all the entrances to the box, and a slightly glossy folded metal sheet facade allows the identification of volume from nearby highway.

No items found.

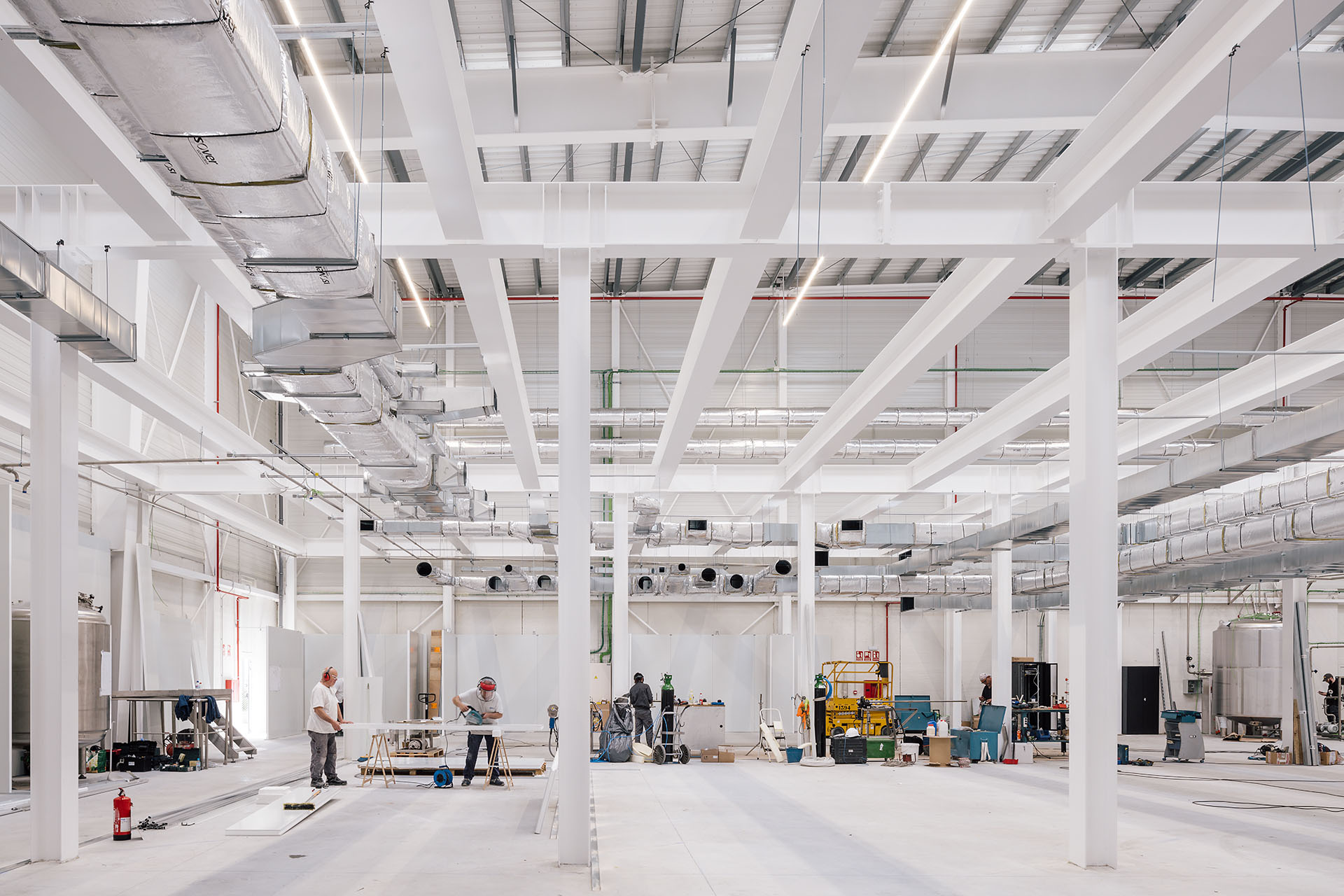

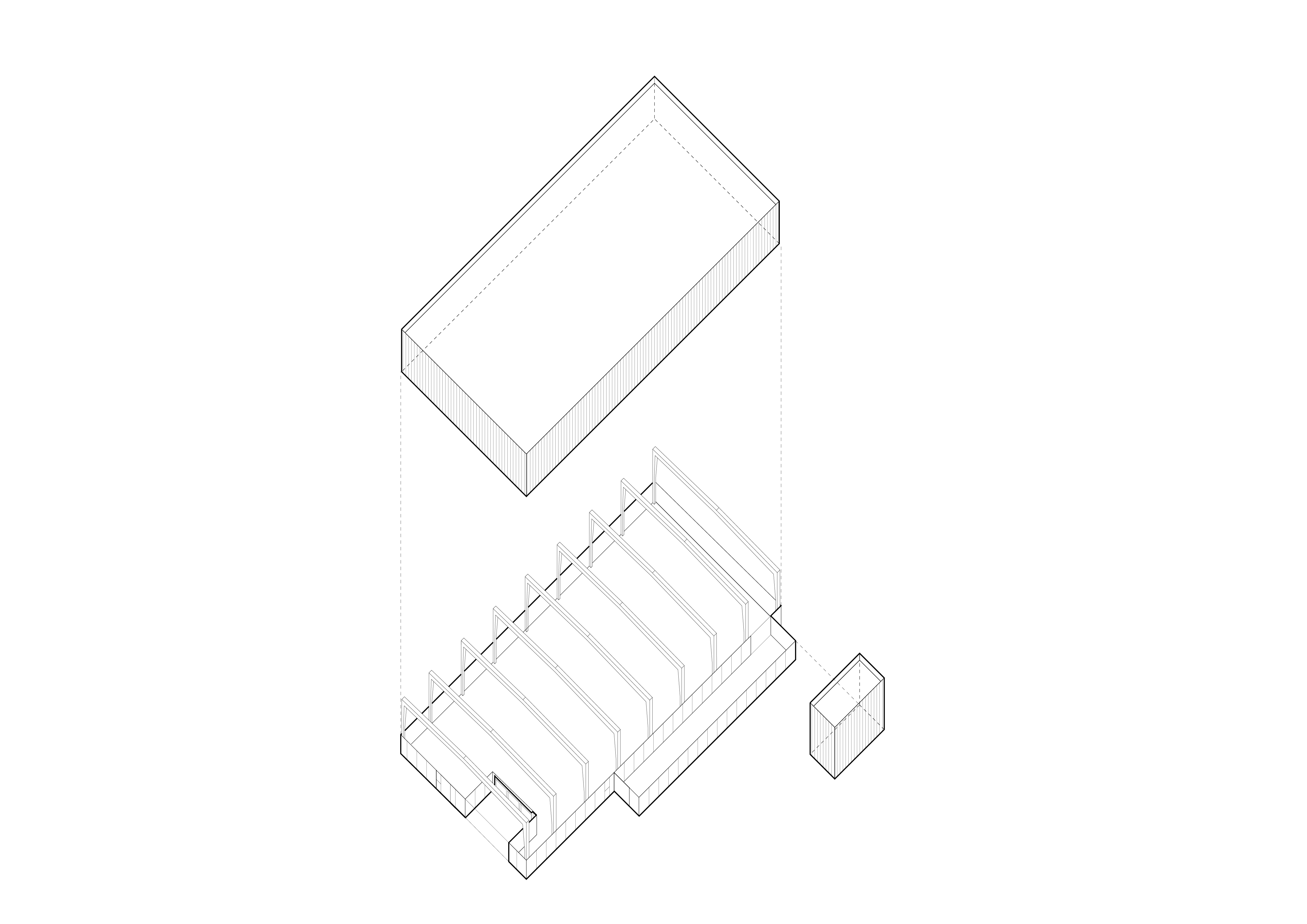

To the south of the M40 motorway, in an industrial area that forms the background to the extension of Carabanchel neighborhood, a pharmaceutical company requires the extension of its facilities to centralize its logistic activity. The original building is an amalgam of volumes making up the corner of an industrial park, where the combination of elements has configured the brand identity. Our proposal synthesizes this complex condition through a simple, abstract operation: an 80x40x14 m box that contains a processing plant and a warehouse. Between the warehouse and the exterior, a service strip hosts the management areas, the technical rooms, and the loading docks.

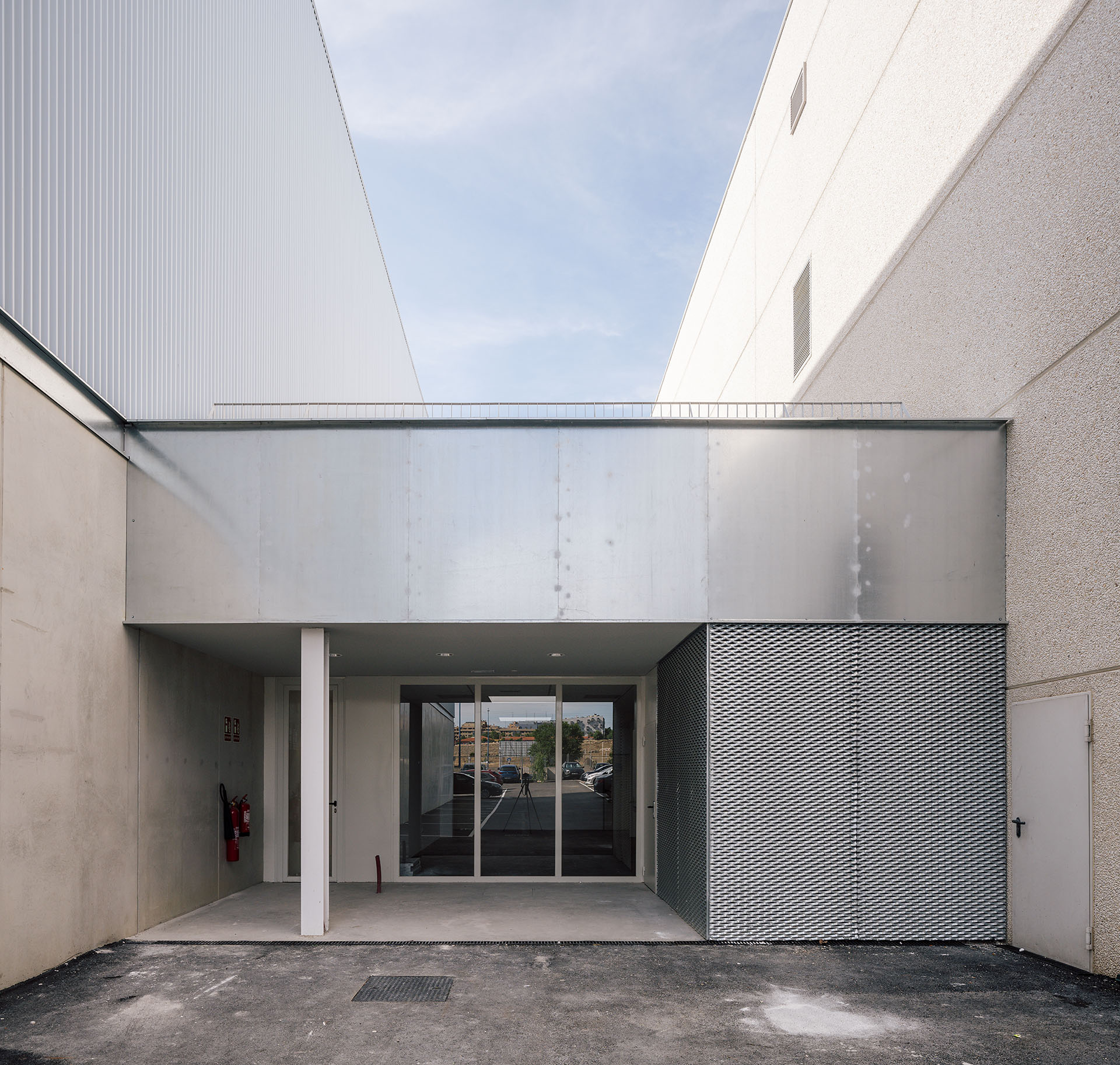

Between the logistics box and the original plant, a slim element, 50x7.50x7.50 m, houses the new access for workers, the changing rooms, and the common areas and, in the background, the connection between both facilities.

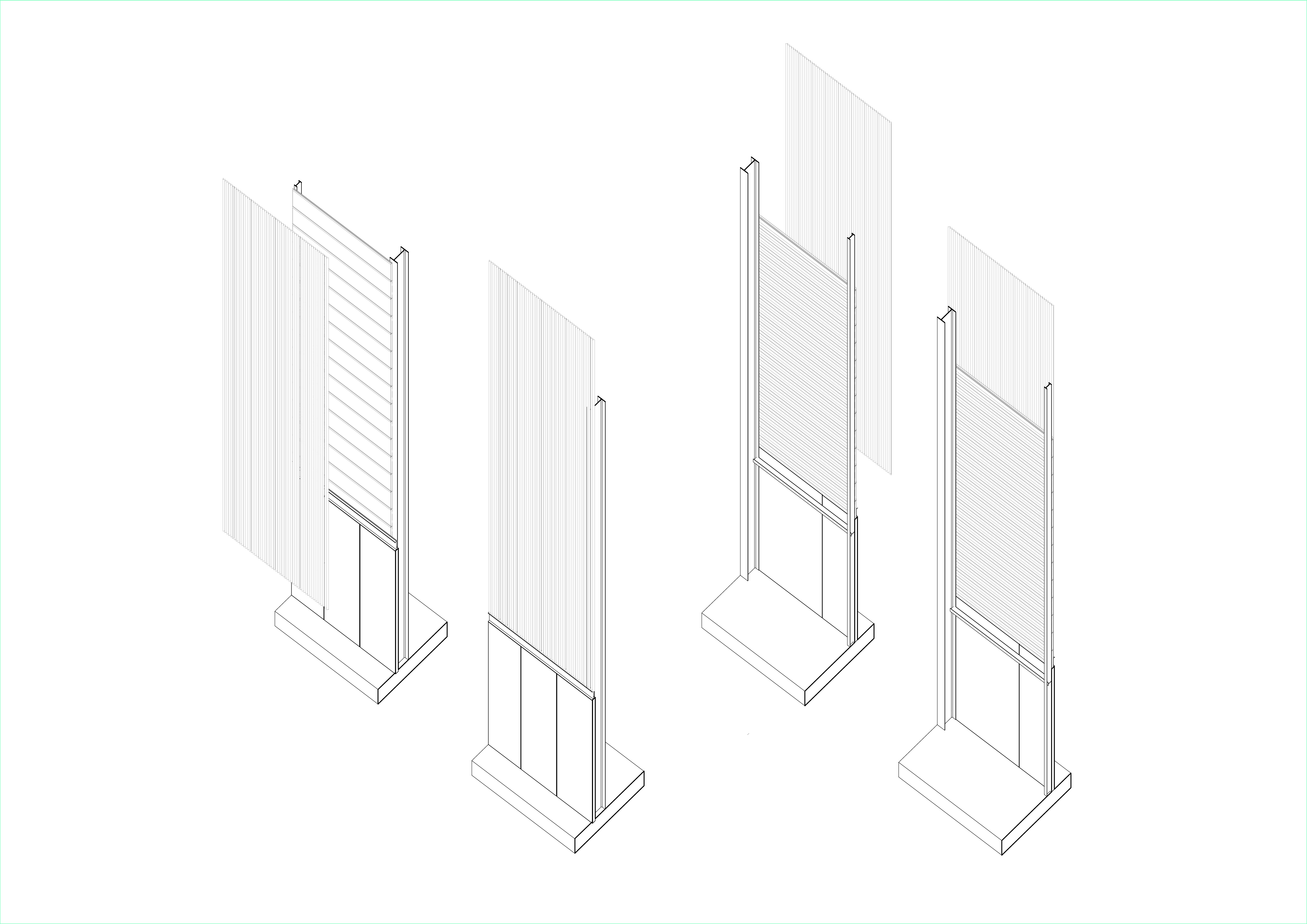

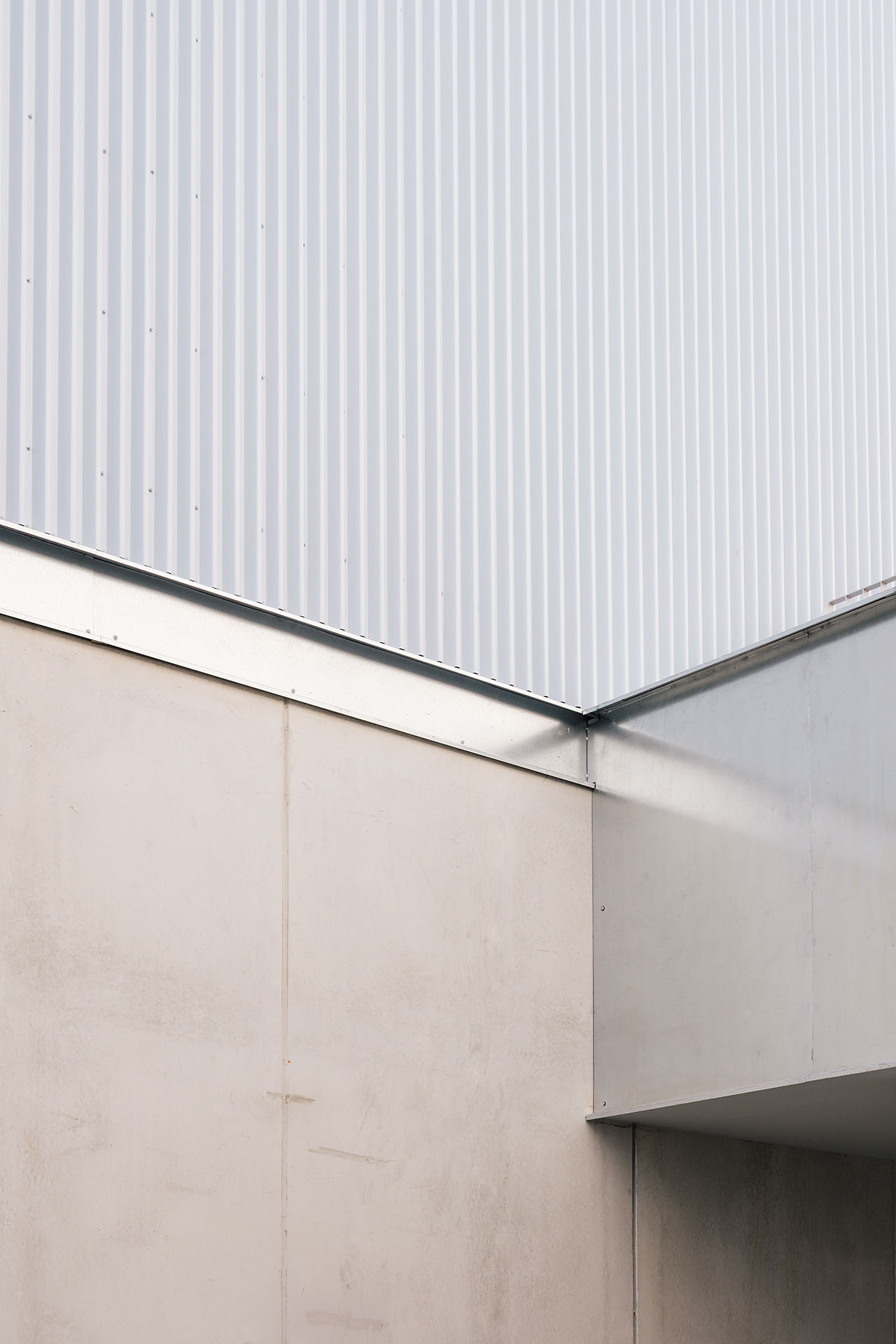

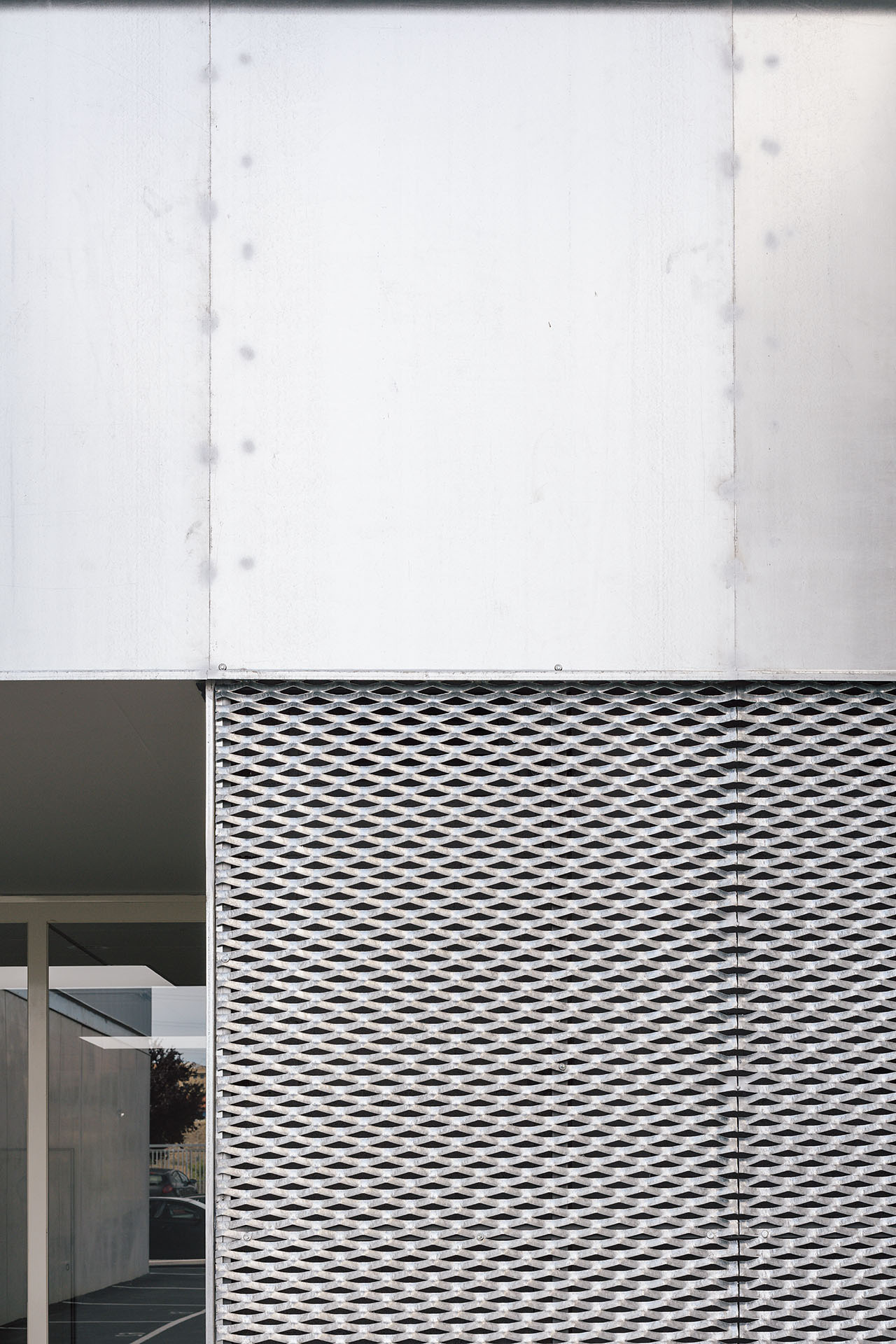

The simplicity of the operation is finished off by the juxtaposition of common prefabricated elements that give the primary volume an additional language: a band of lightly satin precast concrete 4.40 m high includes all the entrances to the box, and a slightly glossy folded metal sheet facade allows the identification of volume from nearby highway.

No items found.

Avizor Logistics

Logistic Center

2020

Client: Private

Surface: 3.700 m2

Location: Leganés, España

Project start: 12.2016

Building start: 03.2019

Building end: 11-2020

Project leaders

Pablo Oriol, Fernando Rodríguez

Collaborators

María Diaz, Iñigo Palazón, Francisco Diaz

Consultants

Antonio Lorenzo, Axiom Ingeniería, Antonio Simón

Photos

Imagen Subliminal (Miguel de Guzmán + Rocío Romero)
